Taping Machine

[Back to Pan-Pioneer]

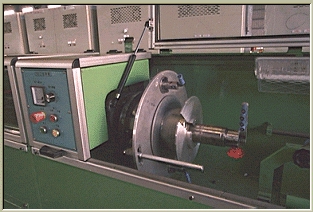

Eccentric Taping machine

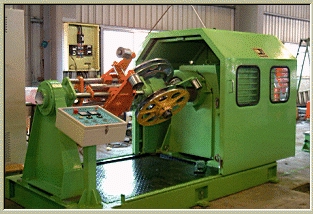

Concentric Taping Machine

ˇ@

ˇ@

ˇ@

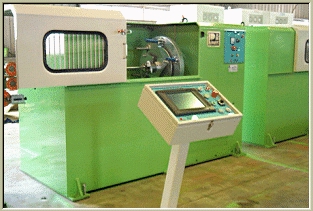

Spooler Type Taping Machine



    As you can see There are variety of Taping machine we offer to our customers. Which type of the Taping machine is suitable to you depends on your applications or which machine you would like to line up with. Our Taping machine , due to the control of CCCS , can be operated in either synchronizing with other machine or alone. This is because , based on the data information from the operators , CCCS can calculate the corresponding Taping machine speed to synchronize with the other machine. Or you can also recall the data already saved in the CCCS database just by a very simple operation procedure. CCCS also shows the Taping machine input angle (The angle between the tape and the cable) and overlapping ratio for confirmation. Therefore , you do not have to worry about making any mistake during operation.

   There are two basic type of the Taping machine available now. One is Concentric Type and the other is Eccentric Type . For the Bigger Cable with shielding purpose (copper tape or steel tape) , at low overlapping ratio required, The Eccentric Type could be chosen. Others with higher overlapping ratio required ( higher than 25%) , then the Concentric Type could be better.

      Except for the importance of the input angle of the tape to the cable, the tension control is also a vital thing while Taping machine. Without keeping the constant tension , the overlapping ratio wonˇ¦t keep constant and the
